New station? Select connectivity:

NB-IoT/WiFi

For almost every location with cellular network coverage – for reliable, low-power, and low-bandwidth communication. Comes with ready to go pre-installed SIM card. Is also WiFi-capable

Price: CHF 975.00
Availability: Built on order (delivery time: approx. 3 weeks)

WiFi

For environments with existing WiFi internet access as well as sufficient and stable signal strength.

Price: CHF 925.00
Availability: Built on order (delivery time: approx. 4 weeks)

Station specifications

Sensors: Wind speed & direction, Temperature, Humidity, Pressure
Connectivity: NB-IoT/WiFi or WiFi only
Data consumption: approx. 5MB/month
Transmission interval: 2 minutes
Power: Integrated Li-ion battery pack consisting of 3× 18650 cells (each 3000 mAh), charged by the station’s own solar module.

Capacity: 9000 mAh
Voltage: 3.7 V
Energy (in total): 33.3 Wh (IATA-compliant, suitable for carriage in carry-on baggage)
Box dimensions: 158mm x 90mm x 60mm
Operating temperatures: -40°C to +60°C

How does it work?

By purchasing your own station, you will get your own station page on our website, customizable with logos and operator information. There will be no additional costs for you (no subscription, no fees, nothing). As we believe weather information – as we provide – it is a non-senstive area of data, all our station pages are publicly viewable.

It's possible to set your station private, however there is a monthly fee of CHF 5 per month for private stations. This can be activated or revoked at any time. And if you need support we're here for you via E-mail.

What's IN the box?

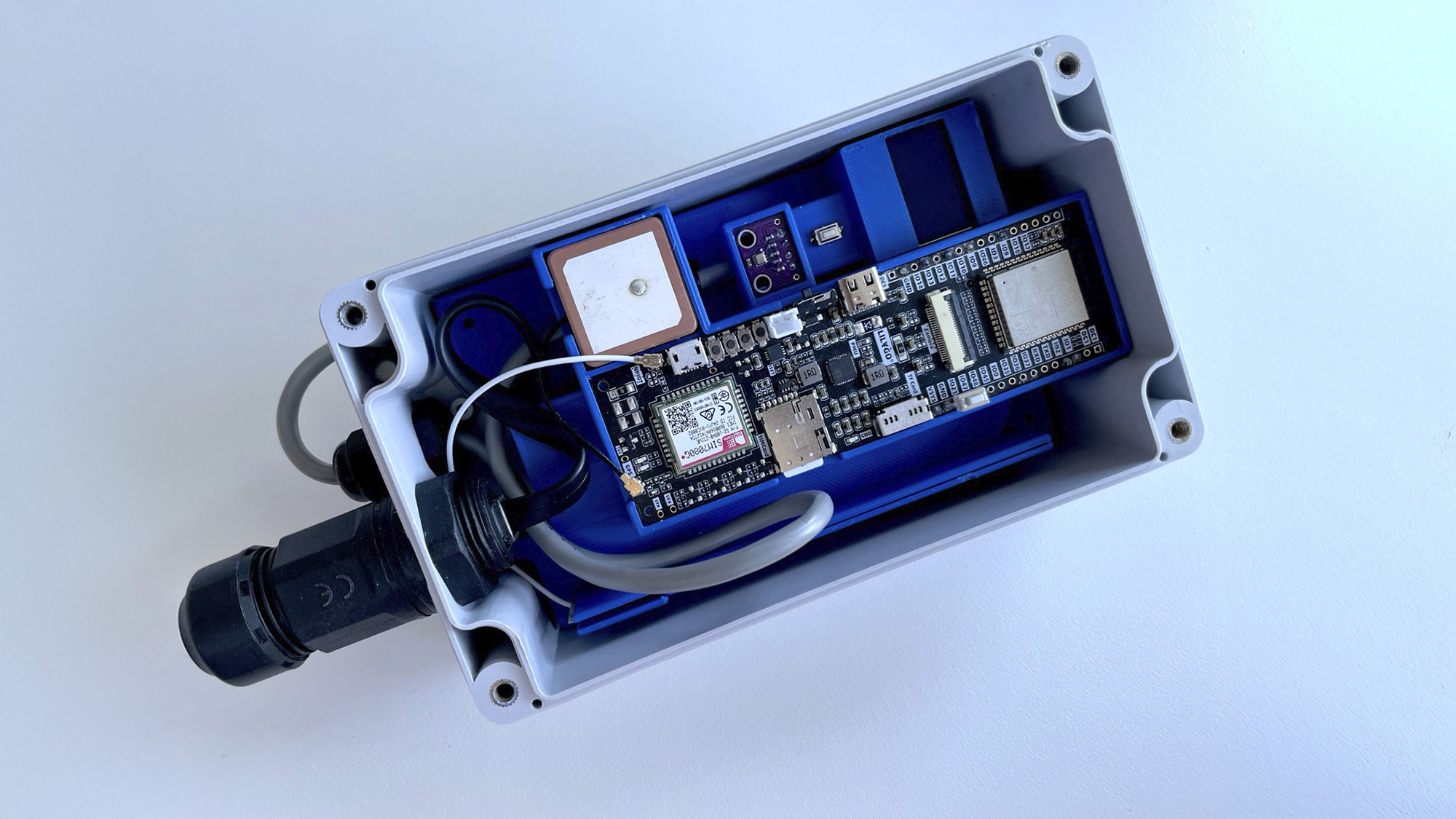

Station box with integrated solar panel (Dimensions: 158mm x 90mm x 60mm)
Built-in Li-ion battery pack (see specifications above)
GPS-Module for accurate map location data
Mounting bracket (attached to station box) with two hose clamps for post

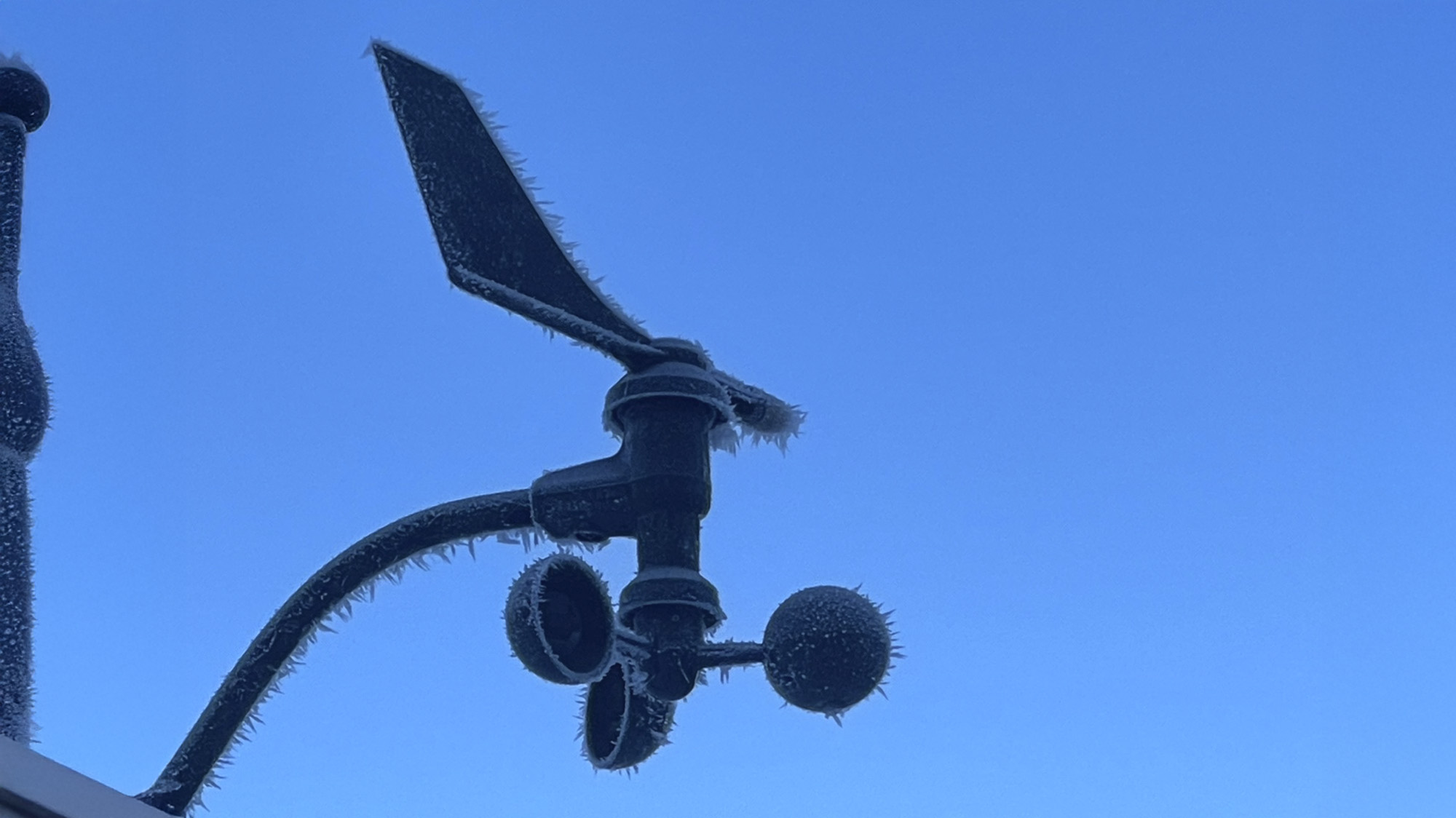

Davis 6410 anemometer (cable length: 12m/40ft, comes with mounting bracket and screws)

What else do I need that's NOT in the box?

Additionally the following items are required:

A stable pole which must stand free of any natural or artificial obstacles to ensure accurate results.
Zip ties to secure the Davis' cable along the pole down to the station.
Tools for mounting the Davis and the Station to the pole.

Payment methods

We currently accept payments via wire transfer.

Why SwissTransmit?

We offer a state-of-the-art weather station, providing real time meteorological data for any type of usage: Aerodromes, alpine cabins, all types of gliding, surfing, RC airfields, harbors, sports arenas – you name it. Designed, assembled and programmed in Switzerland, we represent precision engineering, exceptional reliability, and meticulous attention to detail.
